Industrial Gearbox Inspection and Testing Services: A Technical Guide to Mechanical Integrity

A “repaired” gearbox that hasn’t survived a full-load dynamometer test is often just a ticking time bomb waiting to trigger a $250,000 production stoppage. You’ve likely seen it happen; a unit returns from a shop looking brand new, only to seize within 72 hours because the internal backlash wasn’t set to OEM tolerances. Relying on basic visual checks is a gamble that rarely pays off in high-torque environments. Professional gearbox inspection and testing services must go beyond the surface to validate mechanical integrity through empirical data rather than guesswork.

We know that a vague repair report is useless when you’re trying to prevent the next catastrophic failure. You need a clear understanding of why a component failed and verification that the rebuild can handle real-world loads. This guide provides a technical deep-dive into the methodologies, testing protocols, and diagnostic standards required to ensure industrial gearbox reliability. We’ll examine the specific vibration analysis signatures and contact pattern requirements that separate a high-integrity rebuild from a temporary fix.

The Strategic Importance of Rigorous Gearbox Inspection and Testing Services

A quick visual check might spot a leaking seal or a loose bolt, but it won’t reveal the subsurface fatigue that leads to a catastrophic blowout. Forensic engineering inspections go much deeper than a simple walk-around by analyzing the actual health of the internal components under load. By employing professional gearbox inspection and testing services, maintenance teams can transition from a reactive “fix-it” mindset to a proactive strategy. This shift is essential for understanding gear fundamentals and identifying how specific wear patterns will affect the unit’s long-term reliability.

To better understand the baseline for these technical procedures, watch this breakdown of pre-startup inspection basics:

Reliability-centered maintenance (RCM) relies on this data to break the “repair-fail-repeat” cycle that often plagues heavy industry. When you only fix what’s broken, you’re likely ignoring the underlying mechanical stressors that caused the failure in the first place. A 2022 industry report indicated that nearly 70% of premature gearbox failures are caused by root issues that weren’t addressed during previous overhauls. Detailed diagnostics ensure that every rebuild is backed by empirical evidence rather than guesswork, allowing for better asset management across the plant floor.

Predictive vs. Reactive Diagnostics

Modern technology allows us to see inside the housing without pulling the unit from the line. High-definition borescope inspections can identify early-stage spalling and micro-pitting on gear teeth before they escalate into full-scale fractures. We also rely on oil debris analysis to find metallurgical signatures. If the lab finds high concentrations of chrome or nickel, it’s a clear signal of which bearing or gear set is shedding material. Predictive gearbox maintenance is an insurance policy for critical path equipment that ensures operational continuity by identifying mechanical degradation before it results in a catastrophic stoppage.

The Cost of Undiagnosed Failure

Ignoring a minor vibration or a slight change in oil temperature is a recipe for a cascading disaster. When a single gear tooth fails, the resulting debris often gets caught in the mesh, which can bend shafts or even crack the main housing. These secondary damages can increase repair costs by as much as 300% compared to a scheduled intervention. Standard overhauls often miss these subtle stressors, focusing only on replacing worn parts. Comprehensive gearbox inspection and testing services must be the mandatory final step in any refurbishment lifecycle to verify that the unit can handle its rated load without vibrating itself to pieces.

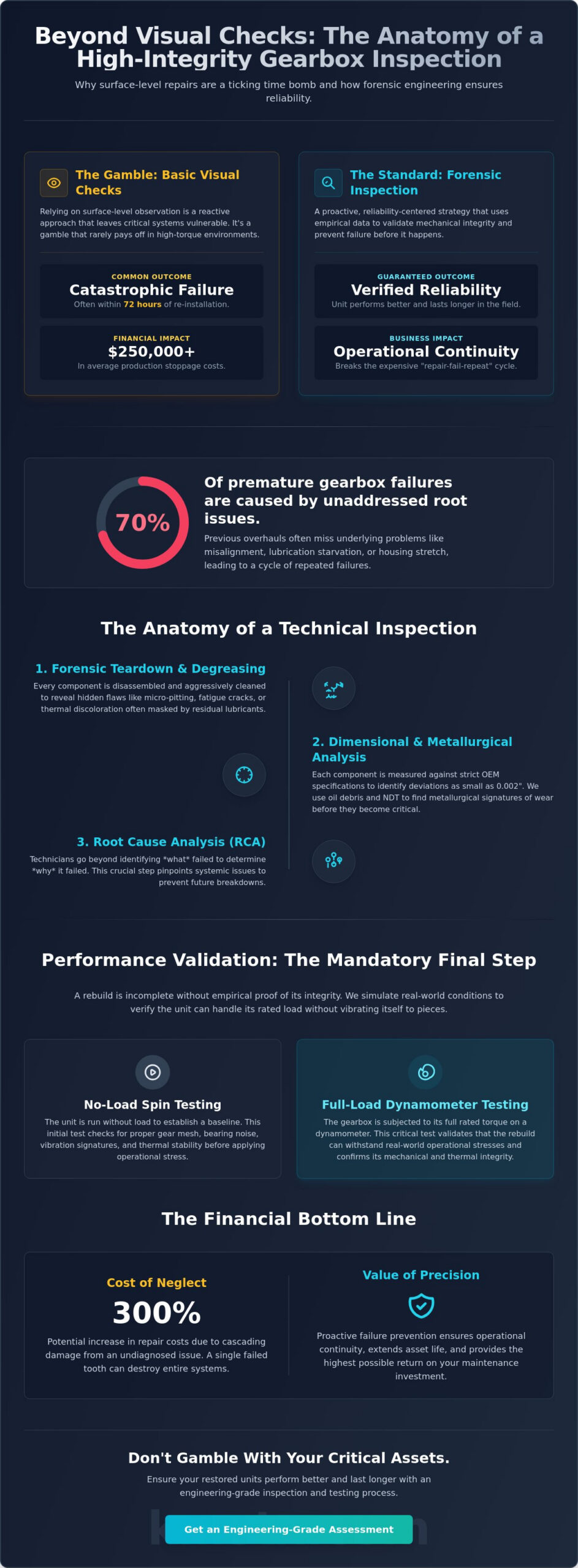

The Anatomy of a Technical Gearbox Inspection

Surface-level visual checks don’t tell the whole story when you’re dealing with high-torque industrial units. Effective gearbox inspection and testing services require a complete teardown and aggressive degreasing of every internal component. Residual lubricants often mask micro-pitting or thermal discoloration on gear teeth. By stripping the unit to its bare components, technicians can identify failure points that would otherwise remain hidden until a catastrophic seizure occurs. A 2021 industry study indicated that 22% of gearbox failures originated from fatigue cracks that were invisible during standard oil changes and external observations.

Once the components are clean, the process moves into the heavy lifting of technical verification. This involves comparing every measurement against original equipment manufacturer (OEM) specifications. Technicians aren’t just looking for broken teeth; they’re looking for the 0.002-inch deviation in a bearing bore that indicates housing stretch. This level of detail ensures the unit doesn’t just run, but operates within its original designed mechanical limits. Without this data, any repair is just a temporary fix.

Non-Destructive Testing (NDT) in Focus

Visual inspection is the baseline, but NDT protocols provide the scientific proof of integrity. Technicians utilize magnetic particle inspection (MPI) to find surface-breaking cracks in ferromagnetic shafts and gears. For internal flaws, ultrasonic testing (UT) detects sub-surface voids or inclusions that visual checks miss. These tests are critical for identifying shaft fatigue and housing stress fractures before they lead to a field failure. Standardizing these NDT reports provides a clear audit trail for insurance compliance and long-term asset management.

Dimensional Integrity and Tolerance Verification

Precision is the difference between a gearbox that lasts five years and one that lasts twenty. Specialists use calibrated micrometers to measure bearing fits and seal surfaces to ensure they haven’t worn beyond acceptable tolerances. Checking for shaft runout and parallelism is a non-negotiable step to prevent premature bearing failure. This technical rigor fits into the broader scope of rotating equipment maintenance, where alignment and precision are the primary drivers of reliability.

The final verification involves contact pattern checks using layout dye. By coating the gear teeth and rotating the assembly under a light load, technicians see exactly how the teeth mesh. If the pattern isn’t centered or shows “toe” loading, it indicates a misalignment or a machining error. Getting this right prevents the localized heat buildup that destroys gear sets. If your facility needs an objective assessment of your high-value assets, reaching out to KMS Technologies can help you establish a baseline for your critical machinery through professional gearbox inspection and testing services.

Advanced Testing Methodologies: Validating Performance Post-Restoration

Reassembling a unit doesn’t mean it’s ready for the plant floor. The final stage of comprehensive gearbox inspection and testing services involves putting the asset through rigorous stress cycles to ensure it won’t fail the moment it hits full operational RPM. We start with no-load spin testing. This process establishes a critical baseline for temperature, noise, and vibration without the interference of external torque. It’s the most effective way to catch a misaligned bearing or a tight seal before they cause permanent damage during regular service.

Following the baseline check, we move to full-load testing. This is where the real validation happens. By simulating the actual operational stresses the unit will face, we verify that the gear teeth are meshing correctly under pressure. We also monitor thermal stability to ensure the oil temperature doesn’t exceed a 20 degree Celsius rise over ambient conditions. If a gearbox can’t handle the heat on the test stand, it won’t survive a 24/7 production cycle in a refinery or mill.

No-Load vs. Load Testing Protocols

No-load testing serves as the minimum standard for verifying assembly accuracy. It’s a quick way to confirm that the internal components are rotating freely. However, for high-consequence applications like industrial centrifuges or heavy-duty mixers, load testing is non-negotiable. We monitor noise levels closely during these runs. A healthy unit typically operates below 85 decibels (dB). If we see spikes beyond that, it’s a secondary indicator that the gear geometry or backlash settings aren’t within spec.

Vibration Analysis and Harmonic Profiles

We use high-sensitivity accelerometers to capture vibration signatures, which we then process using Fast Fourier Transform (FFT) data. This allows us to isolate specific frequencies, like gear mesh frequencies or bearing pass frequencies, to identify microscopic faults. We compare these readings against AGMA standards to determine if the vibration is “Acceptable” or “Critical.” To eliminate residual kinetic energy that causes premature bearing failure, dynamic balancing services are integrated into the final testing phase to ensure the rotor assembly operates within tight tolerances.

Root Cause Analysis (RCA): Turning Inspection Data into Action

Identifying a chipped tooth or a pitted bearing is only the first step. Professional gearbox inspection and testing services don’t stop at documenting the damage; they dig into the mechanics of why the failure occurred. If you simply replace components without addressing the underlying cause, you’re just setting a timer for the next breakdown. We use forensic evidence like micro-pitting, beach marks on gear teeth, and discoloration from localized heat to trace failures back to their source. These clues often point toward lubrication starvation, chronic misalignment, or over-torquing during peak load cycles.

Forensic Failure Analysis

Wear patterns tell a specific story about the entire process line. For example, uneven contact patterns on a helical gear set usually signal a housing bore misalignment or a shaft that’s bending under load. While normal fatigue might appear after 25,000 hours of service, accelerated wear from abrasive contamination can destroy a unit in less than 4,500 hours. When these systemic issues are identified, industrial gearbox repair protocols are modified. Instead of a standard rebuild, the team might suggest upgrading seal types or moving to a synthetic lubricant with a higher viscosity index to handle 15 percent higher thermal loads.

The Value of Detailed Technical Reporting

A high-quality inspection report is a tool for better decision-making, not just a pile of paperwork. It should include high-resolution before and after photos, Magnetic Particle Inspection (MPI) results for crack detection, and dimensional charts showing tolerances down to 0.0005 inches. This level of detail helps maintenance managers justify capital expenditure (CAPEX) versus operational expenditure (OPEX). If a specific asset fails three times in a 24-month period due to torque spikes, it’s time for an engineering review rather than another repair bill. Standardizing this data allows you to track asset health over a 10-year lifecycle and adjust site-specific maintenance intervals based on actual wear rather than generic manufacturer recommendations.

Gearboxes don’t operate in a vacuum. A vibration issue in the prime mover or a loose coupling at the output shaft directly impacts the internal gear mesh. Comprehensive gearbox inspection and testing services evaluate these external factors to ensure the entire drive train remains reliable. By looking at the gearbox as part of a larger mechanical system, you reduce the risk of catastrophic failures that can cost upwards of $50,000 in unplanned downtime.

The Kelsey Machine Standard: Engineering-Grade Restoration

Kelsey Machine integrates over 40 years of field-tested mechanical expertise into every protocol for gearbox inspection and testing services. We don’t just identify wear; we diagnose the root cause of component failure to prevent a repeat of the same issue six months down the road. Our team understands that when a critical drive goes down, every hour of lost production impacts the bottom line. By maintaining an engineering-grade restoration standard, we ensure that every unit leaving our facility meets or exceeds original OEM specifications. We’re so confident in our process that we invite clients to our facility to witness the final testing phases in person. This transparency builds the trust necessary for long-term industrial partnerships.

Integrated Repair and Machining Capabilities

Our in-house machine shop is the primary reason we can offer rapid turnarounds on complex projects. We don’t rely on third-party schedules to correct housing misalignments or to grind shafts back to their original tolerances. Having these capabilities under one roof allows us to control the quality of every bore and thread. Restoring complex planetary and helical units requires a level of precision that standard repair shops often miss. If we find that a gear is beyond repair and the manufacturer no longer supports the model, we utilize our procurement network for industrial machine spare parts to source or reverse-engineer obsolete components. This ensures your equipment remains operational even when the original supply chain fails.

Final Validation and Warranty

Validation is the most critical step in our workflow. Every refurbished gearbox undergoes a rigorous 24-hour run-in process to verify mechanical integrity before it’s shipped back to your site. We monitor temperature stabilization, vibration signatures, and oil flow under load to ensure the unit is ready for immediate, high-demand field service. This data is compiled into a final “birth certificate” for the gearbox. This document serves as a technical record of all clearances, torque values, and test results. It provides your maintenance team with a baseline for future predictive monitoring. We stand behind our work with a comprehensive warranty that reflects our commitment to precision and reliability.

Prioritizing Mechanical Integrity on the Factory Floor

Maintaining a reliable production line depends on catching mechanical fatigue before it turns into a catastrophic failure. Rigorous NDT and performance validation ensure that every component, from the gear teeth to the housing, meets the original design intent. Our team leverages over 40 years of rotating equipment expertise to identify root causes and implement engineering-grade restorations that actually last. We don’t just guess at the problem; we use in-house precision machining and empirical data to prove the fix. Because critical assets can fail at any hour, we provide 24/7 emergency support to keep your operations running when things get tough. Investing in professional gearbox inspection and testing services is the best way to move from reactive repairs to a proactive reliability strategy. When you understand the true condition of your machinery, you can make smarter decisions for the long haul.

Request a Technical Consultation for Gearbox Inspection and Testing

Your equipment represents a significant investment, and with the right technical partner, it’ll continue to perform for years to come.

Frequently Asked Questions

What is included in a standard industrial gearbox inspection?

A standard inspection covers a visual housing check, internal gear tooth contact patterns, and bearing end-play measurements. Technicians utilize 4mm borescopes to document pitting or spalling without opening the case. We also perform a 12-point oil analysis to check for 20 unique wear metals. This process ensures all internal components meet the original equipment manufacturer specifications before the unit returns to service.

How long does a typical gearbox teardown and inspection take?

A standard teardown and inspection typically requires 24 to 72 hours depending on the unit’s frame size. Small planetary units are often fully documented within 1 business day. Larger 50,000 pound custom drives used in mining or steel mills require 3 days for a complete strip-down and component cleaning. Our gearbox inspection and testing services prioritize quick turnarounds to minimize your facility’s unscheduled downtime.

Can gearbox testing be performed on-site, or must the unit be sent to a shop?

Most initial assessments happen on-site, but full performance validation requires a dedicated test stand at a repair facility. Field technicians use vibration sensors and thermal imaging to find immediate faults. However, shop testing allows us to run the unit at 1,750 RPM while monitoring oil pressure and temperature in a controlled environment. This ensures the gearbox handles operational stress before it’s reinstalled on your factory floor.

What are the most common signs that a gearbox requires immediate testing?

You should schedule testing immediately if housing temperatures exceed 200 degrees Fahrenheit or if noise levels jump by 10 decibels. Visible metal flakes in the oil filter larger than 50 microns are another critical red flag. Ignoring these signs often leads to a 40% increase in total repair costs because a simple bearing swap turns into a full gear set replacement.

What is the difference between no-load and full-load gearbox testing?

No-load testing checks for basic rotational balance and leaks, while full-load testing applies 100% of the rated torque to the output shaft. We use a closed-loop regenerative test stand to simulate real-world resistance. This process reveals deflection issues or tooth contact misalignments that don’t show up when the gears are just spinning freely. It’s the most reliable way to verify gearbox inspection and testing services results.

How does vibration analysis help in detecting gearbox failures?

Vibration analysis identifies the exact frequency of failing components by measuring velocity in inches per second. If we see a spike at the 120 Hz mesh frequency, we know a specific gear has a chipped tooth. We track these readings against the ISO 10816-3 standard to determine if the gearbox is safe to operate or if it’s heading for a catastrophic lock-up.

Does a gearbox inspection include a root cause failure analysis?

Yes, we provide a formal Root Cause Failure Analysis (RCFA) if the inspection reveals abnormal wear patterns. Our team follows the 5-Whys methodology to determine if the failure stemmed from lubrication breakdown, misalignment, or 20% overhung load issues. Identifying the source prevents the same problem from killing your new gear set within the first 6 months of operation.

What industry standards (like AGMA) do your testing services follow?

Our testing protocols strictly adhere to AGMA 6001-E08 standards for gear tooth accuracy and ISO 1328 for cylindrical gears. We also follow the API 613 guidelines for high-speed special purpose gear units used in refinery applications. These benchmarks ensure that every gearbox we certify meets or exceeds the mechanical integrity requirements of the 2024 industrial market.
